Revv Tilt

Tilt

£239.00

Highlights

• Signature Shawn Tubbs overdrive delivering rich, dynamic tones with powerful, flexible boost control
• Warm, dynamic overdrive with versatile boost, precise EQ, and authentic vintage amp tone response
• Responds naturally to picking dynamics for expressive, nuanced playing
• Feels like playing through a cranked valve amp with organic touch sensitivity
• Shape your sound with responsive controls, rich EQ, and boost tailored to your playing style
• Amp style overdrive and boost circuits deliver rich tone, dynamic response, and effortless sonic control
• Rugged all metal shell built to gig, with top jacks for a clean, pro pedalboard setup
• Striking blue sparkle finish paired with bold Shawn Tubbs graphics for standout style
• LED indicators give instant, stylish feedback when boost and drive are engaged
• True bypass keeps your original tone crystal clear, letting your guitar’s natural voice shine through
• Top mounted jacks and DC input deliver sleek, clutter free connections
• Revv Tilt Overdrive comes with solid warranty support, keeping your tone worry free and ready

Description

The Revv Tilt overdrive is a dual circuit pedal designed with session pro Shawn Tubbs and Revv’s Dan Trudeau. It combines a medium gain amp voiced overdrive and a flexible, sculptable clean boost in one compact, pedalboard friendly unit. Whether you're building a rig around the Tilt or slipping it into your existing signal chain, it brings recording ready tones and expressive responsiveness straight into your hands.

Sonically, the overdrive channel captures the feel and richness of a cranked vintage amp, think edge of breakup dynamics that open up when you dig in. At lower gain levels it cleans up with your guitar’s volume control, and at higher settings it moves into Marshall style overdrive territory while remaining musical and touch sensitive. The EQ is finely tuned: the treble offers huge range beyond midday, and the bass knob actually emphasises low mids without becoming muddy.

Switch over to the clean boost side and you’ve got up to 12 dB of headroom with independent boost and Tilt EQ controls. Tilt EQ lets you blend more lows or highs depending on direction, while the three position Tight switch trims low end selectively, tight, normal or roomy voicing as you need.

Playing the Tilt feels immediate and inspiring. The Revv Tilt overdrive reacts to pick dynamics with crispness and clarity. Holding the drive footswitch for about 1.5 seconds engages both overdrive and boost simultaneously, perfect for lead transitions or switching up quickly on stage. You can also power it up so it's active by default when you turn on your rig.

The Revv Tilt overdrive controls are straightforward and flexible. On the drive side you get Treble, Bass, Gain and Level knobs that deliver clean tonal shaping. The boost side has Boost level and Tilt EQ pots, and the Tight toggle switch for additional voicing. Their ranges are intuitive and musical, nothing exaggerated or gimmicky, just smooth tone control exactly where you need it.

Inside lies an all analogue circuit built from scratch, not based on any other pedal. The drive section is LED clipping but voiced to respond like a valve amp. The boost side features internal 18 V headroom circuitry and silent relay switching between modes. It took over a year of R&D with multiple prototypes and artist input to reach its final form.

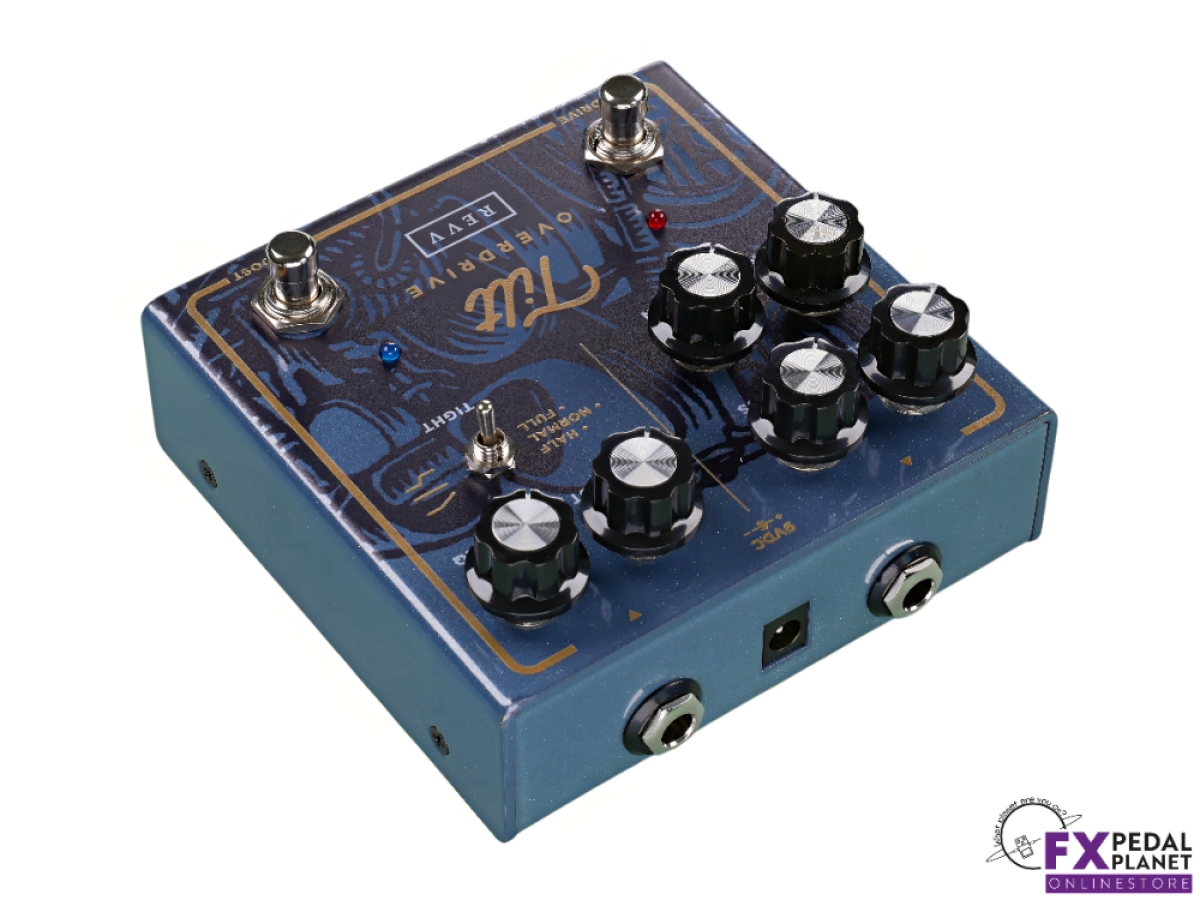

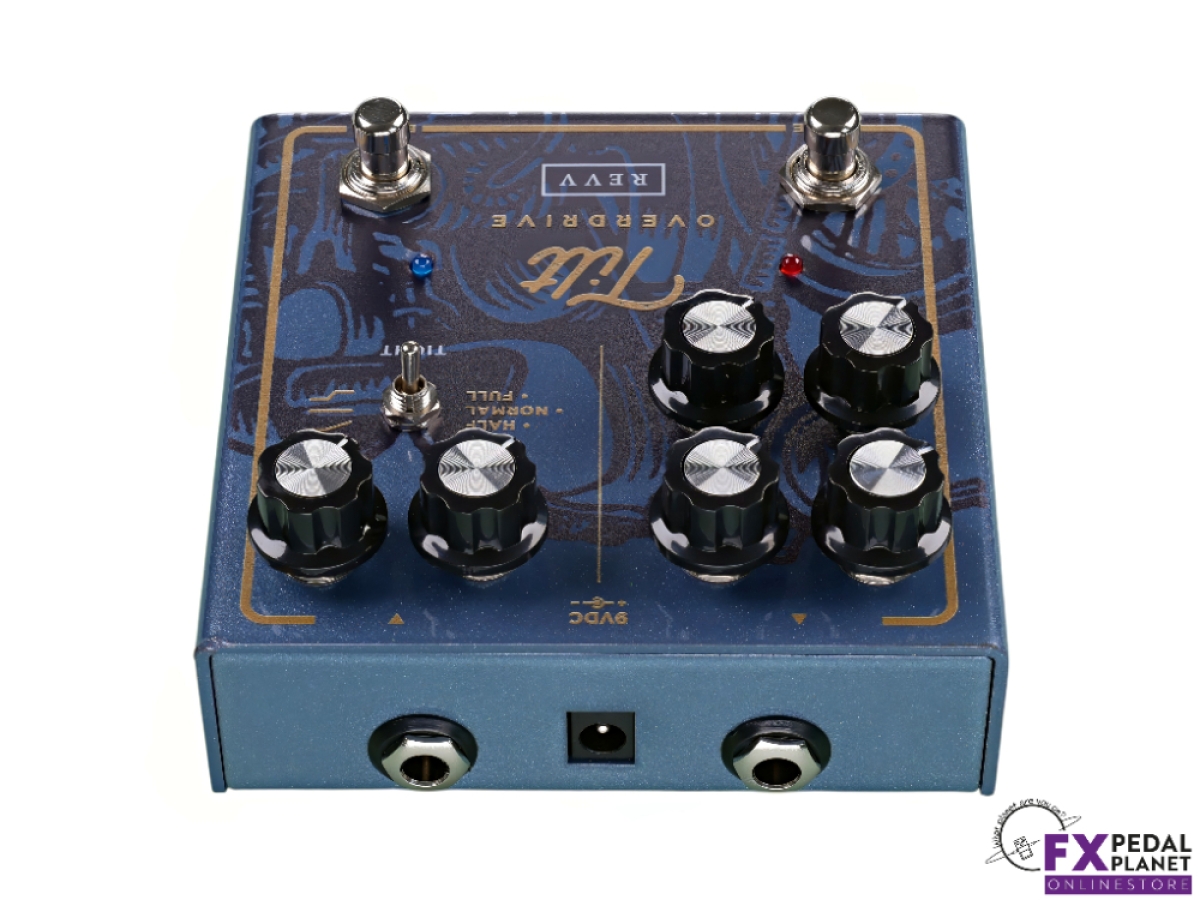

The Revv Tilt overdrive’s enclosure is robust and practical. Finished in charcoal blue metallic powder coat with a custom Shawn Tubbs graphic and laser etched signature, the small footprint includes top mounted ¼ inch jacks that save pedalboard real estate.

A conveniently placed blue LED indicator shows when the effect is active, helping you monitor status even on dark stages or rehearsal spaces.

True bypass switching preserves your unprocessed tone when the pedal is off. There’s no colouration or signal loss, just transparent bypass that keeps your original clarity intact.

The DC input sits clearly marked on the side, edge aligned to avoid cable crossing on your board. With silent relay switching and power requirements of 9 to 12 V DC (centre negative, ~35 mA), it's easy to integrate into most powering systems.

A 2 year limited warranty (upon registration) provides reassurance that your investment is backed.

In summary, the Revv Tilt overdrive and boost stands out as a versatile, highly musical pedal offering responsive amp like overdrive and a sculptable, high headroom boost. It speaks to the player, shaping tone that retains the character of your guitar and your touch. Whether you’re gigging, recording or adding flair to your tone in rehearsal, Tilt brings clarity, flexibility and feel to every note.

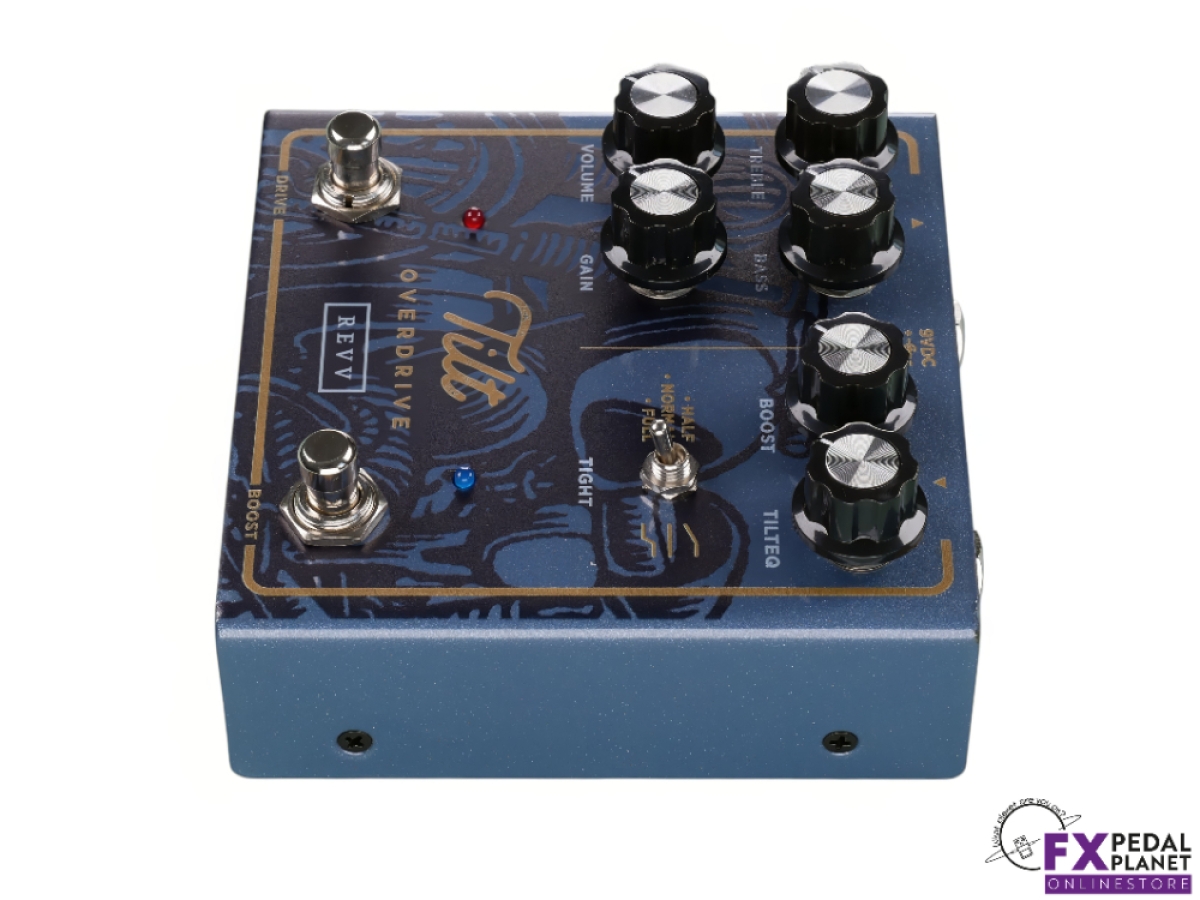

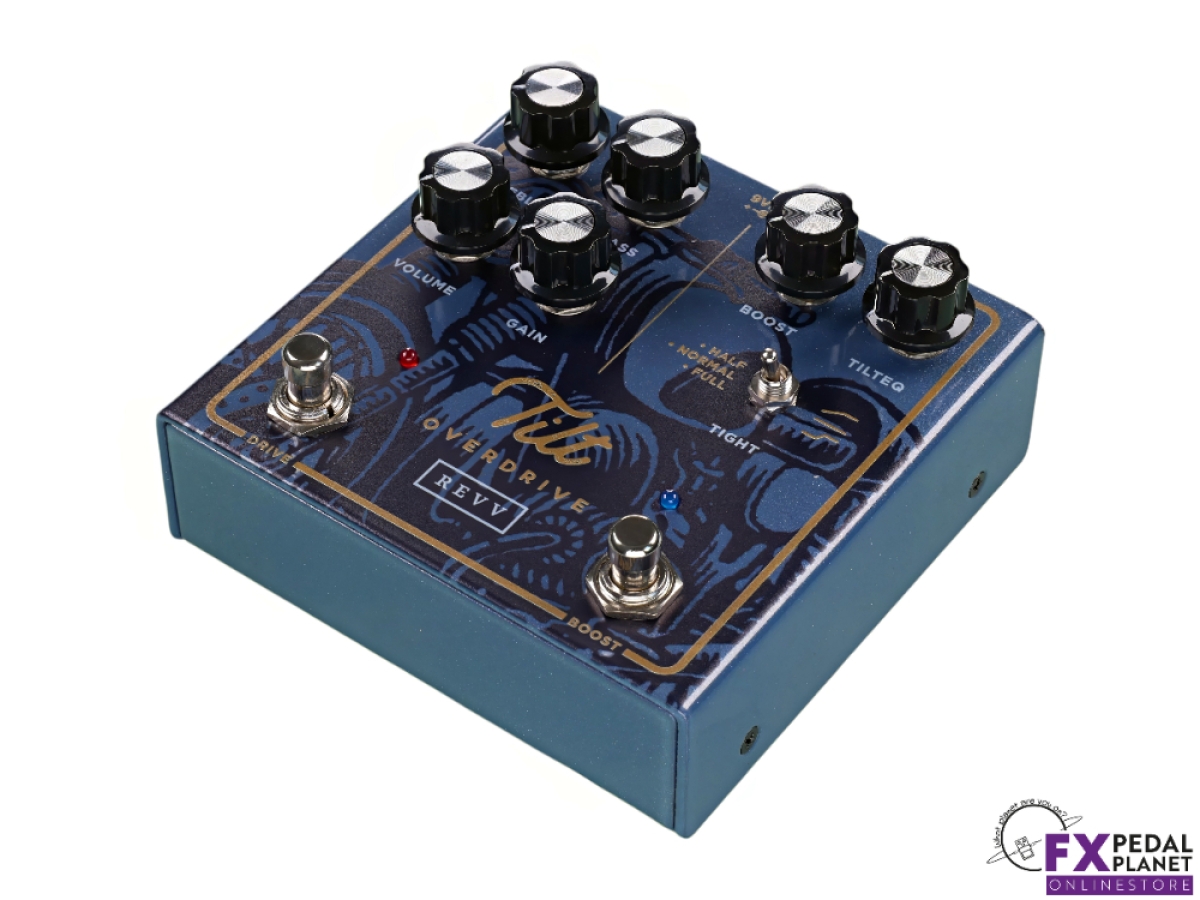

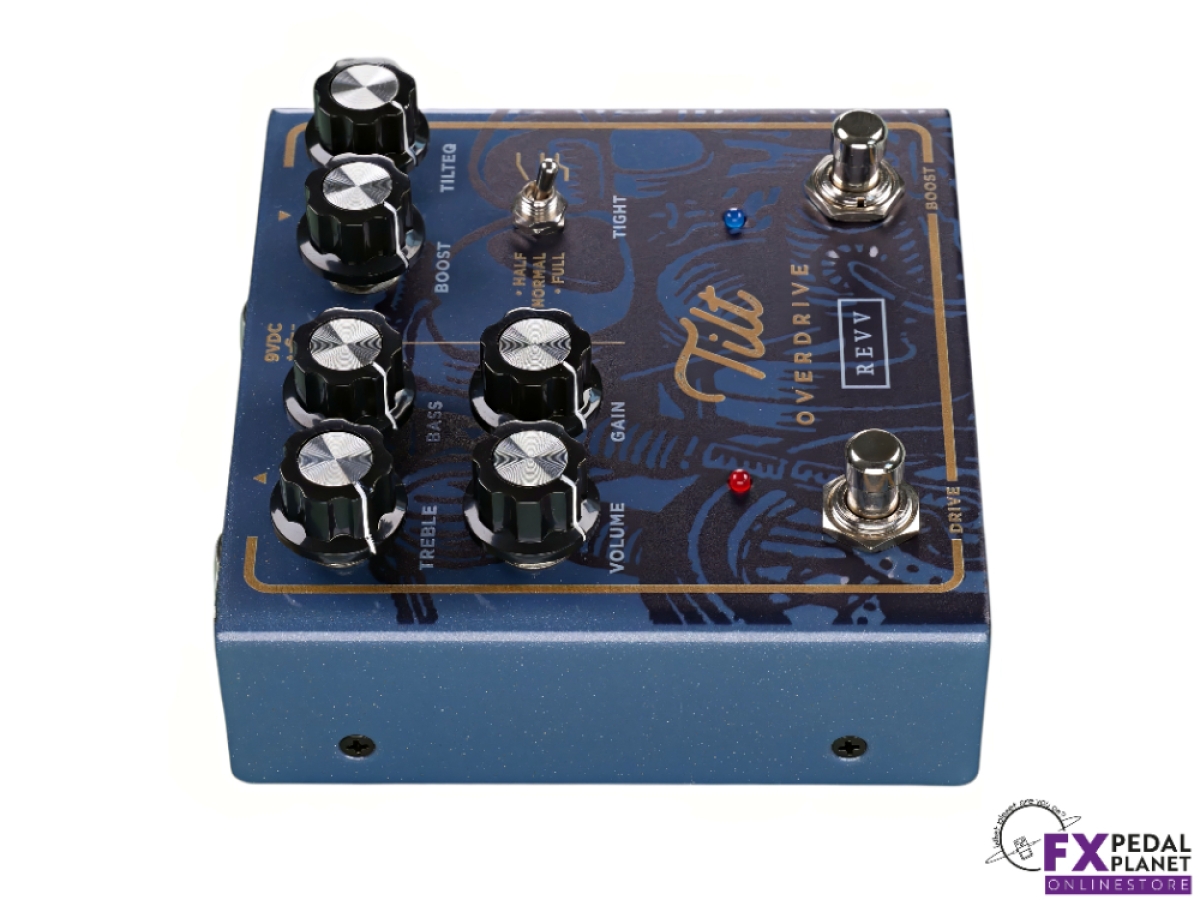

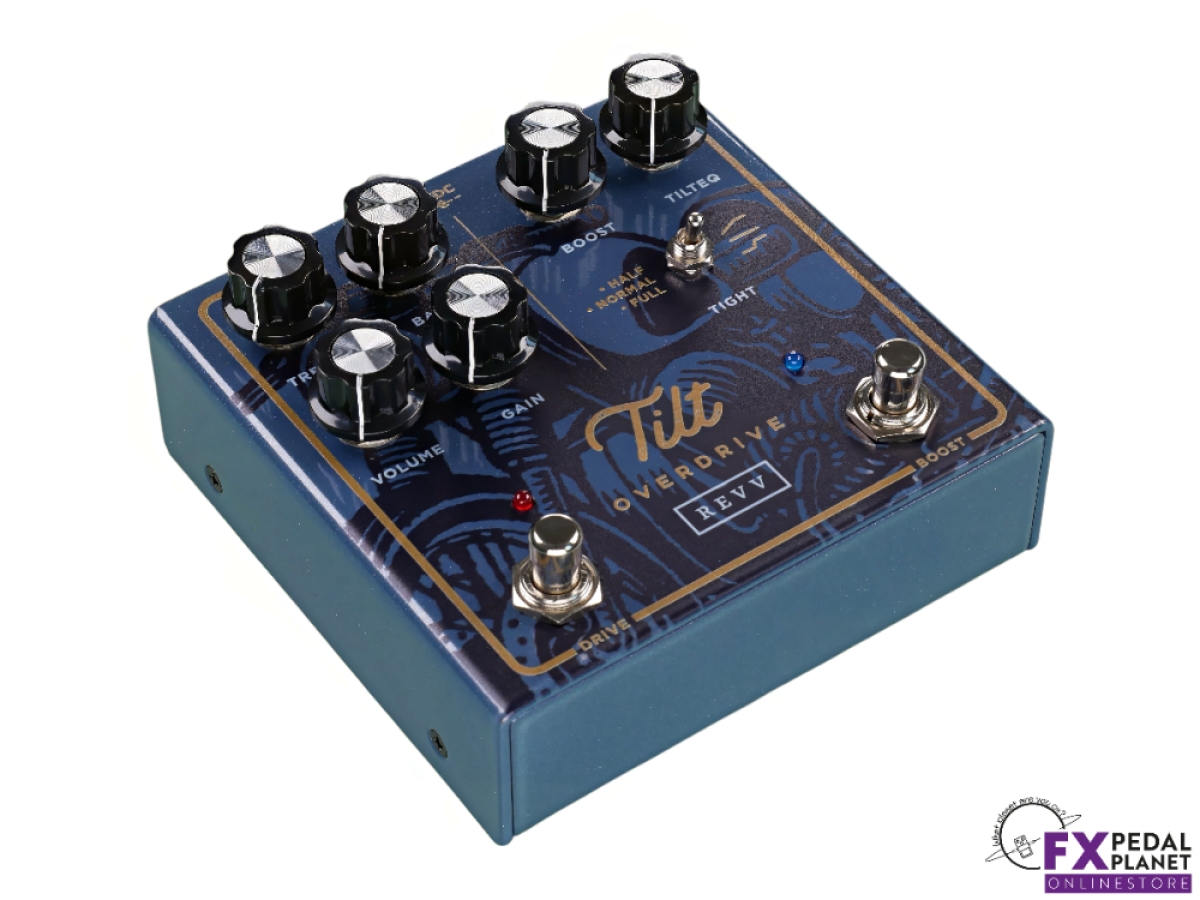

Controls

• LEFT FOOTSWITCH activates drive, offering tactile control for seamless tone changes live
• RIGHT FOOTSWITCH controls boost on/off, providing quick access to dynamic volume boosts
• VOLUME controls overall output, offering clear, consistent level adjustments for any setup
• GAIN adjusts drive intensity with smooth response, from subtle grit to full on overdrive
• TREBLE delivers bright, crisp highs with a wide range for detailed tonal shaping
• BASS enhances low mids without muddiness, perfect for thickening guitar tones
• BOOST footswitch toggles a 12dB clean boost, adding punch and presence instantly
• TILT EQ sweeps tone balance between bass and treble for versatile sound sculpting
• TIGHT TOGGLE switch tightens low end on boost, cutting mud for defined, focused tone

Components and Technical Specifications

• High quality components ensure clear, dynamic tone and reliable performance every time
• Proprietary Tilt EQ circuit offers unique mid frequency control for versatile tonal shaping
• Low noise design preserves signal integrity even at high gain settings
• Optimised capacitor and resistor selection enhances tonal clarity and response
• Buffered output maintains signal strength over long cable runs
• Voltage headroom designed for consistent tone without unwanted distortion
• Input and output impedance matched for smooth interaction with various gear
• Circuit delivers consistent overdrive with natural feel and touch sensitivity
• Components selected for roadworthiness and long term reliability under heavy use
• Signal path crafted to retain clarity, punch, and musicality at all settings
• Powered by standard 9V centre negative supply
• Battery operation not supported
• Current Consumption meter readings (mA) by Truetone:
  • Less than 25 mA bypass
  • Less than 73 mA maximum

Enclosure Dimensions

• Depth: 110 mm / 4.3 in
• Width: 114 mm / 4.4 in
• Height: 35 mm / 1.3 in

Weight

• 383 g
• 0.84 lbs
