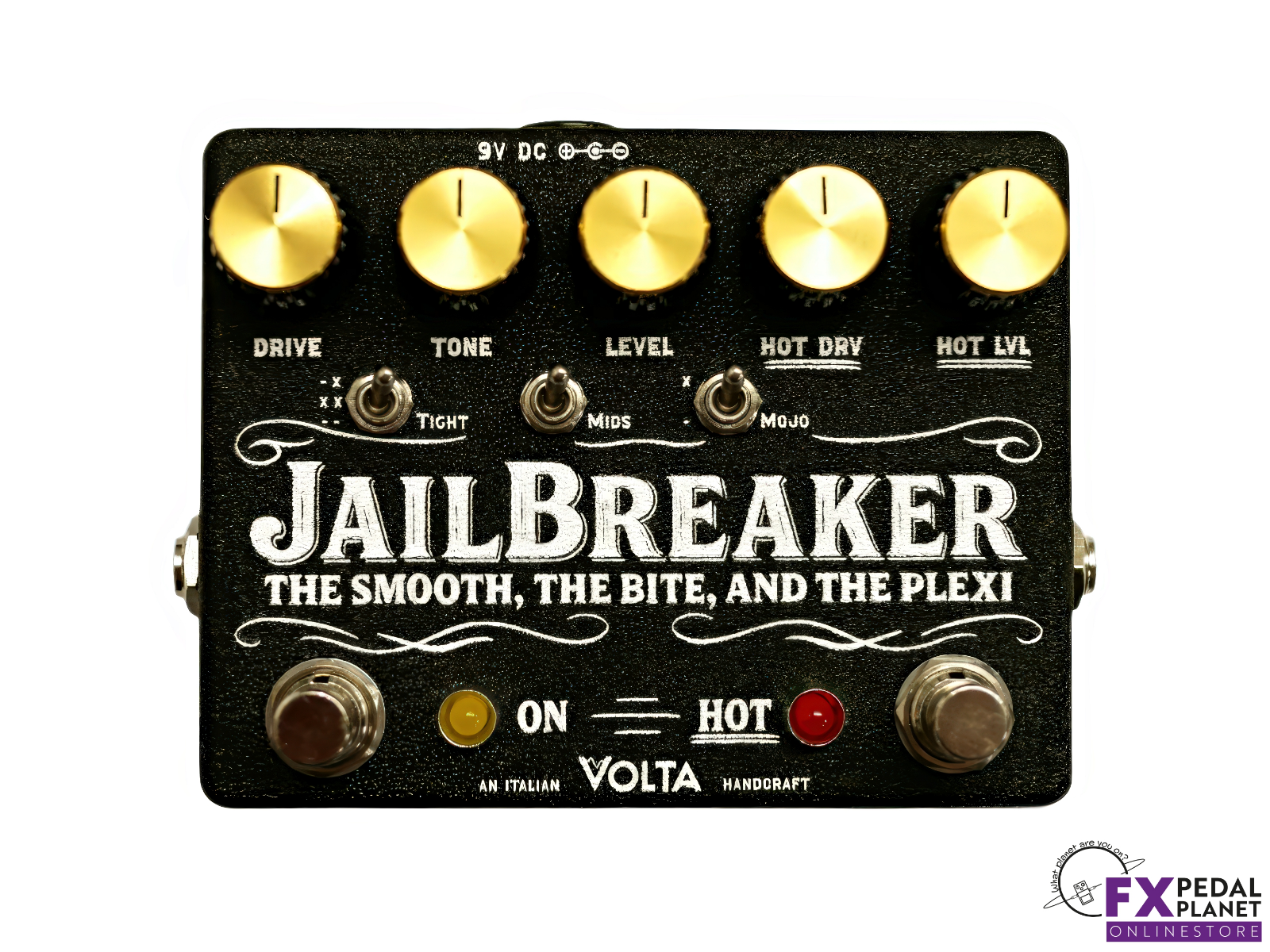

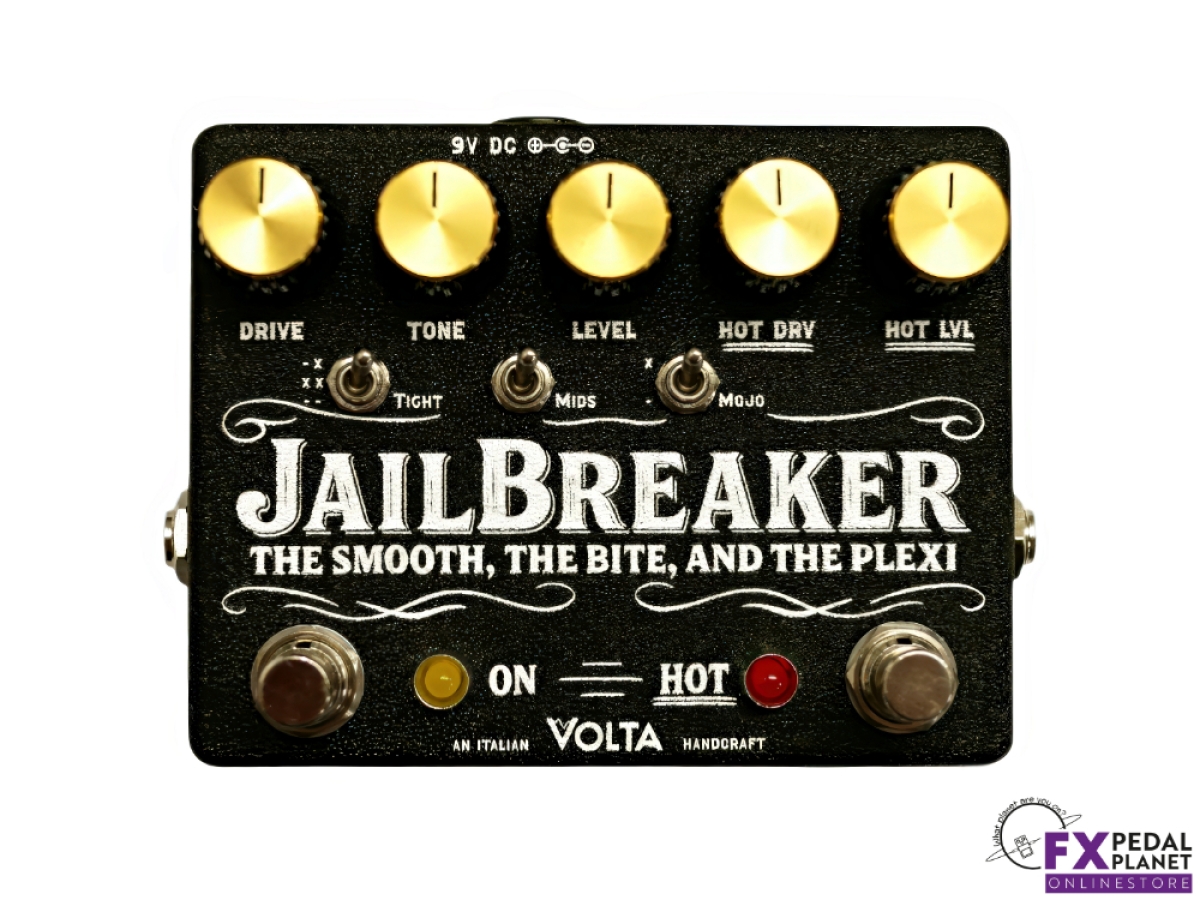

Volta Custom Jailbreaker

Jailbreaker

£259.00

Highlights

• Amp-style overdrive and distortion pedal with dual channel operation
• JTM45 combo tones from clean to saturated drive
• Touch-sensitive response with natural compression and harmonic detail
• Simple gain tone and level shaping with additional hot channel controls
• Analogue amp-style circuit with dual gain staging and tonal switches
• Hand built to order with careful assembly and testing
• Rugged powder-coated aluminium enclosure for long term use
• Clear western-inspired graphics with high visibility control layout
• LED indicators show channel status and effect engagement
• True bypass switching preserves signal when disengaged
• Fully analogue design for authentic amp-like response
• Side mounted jacks for efficient pedalboard integration
• Manufacturer backed build quality and reliability
• Standard manufacturer warranty included for peace of mind

Description

The Volta Custom Jailbreaker is an amp-style overdrive and distortion pedal designed to deliver the character and response of a classic JTM45 combo directly onto a pedalboard. Built for players running clean amps, direct rigs, or cabsim setups, it provides a consistent, amplifier-like foundation across a wide range of musical styles, from blues and classic rock through to more saturated modern tones.

Tonally, it captures the warmth, midrange character, and dynamic response associated with early British valve amplifiers, with a wide gain range that moves from edge-of-breakup clarity to rich, sustaining drive. Notes retain separation under gain, chords remain defined, and the pedal responds naturally to picking dynamics and guitar volume changes, making it equally effective for both rhythm and lead work.

In use, the Volta Custom Jailbreaker feels immediate and responsive, encouraging expressive playing. Light picking yields clean or lightly driven tones, while digging in introduces natural compression and harmonic saturation. The additional hot channel expands its usability, allowing players to move between base tones and higher gain sounds without adjusting the main controls.

The control layout is straightforward but highly effective. The primary gain, tone, and volume controls provide broad shaping, while the hot drive and hot level controls add a second layer of gain and output for lead work. The tight switch refines the low end for improved clarity, and the mojo switch introduces a more compressed, power-amp-like response, giving players practical tools to adapt the pedal to different rigs and playing styles.

The circuit is fully analogue and designed to emulate the behaviour of a driven amplifier, delivering consistent performance with low noise and strong headroom. Its dual-stage gain structure allows for flexible stacking within a single enclosure, reducing the need for additional pedals.

Built by hand and housed in a powder-coated aluminium enclosure, the Volta Custom Jailbreaker is designed for regular use on pedalboards and stages. The controls are clearly labelled and easy to read under typical lighting conditions, while the LEDs provide clear indication of effect status and channel selection.

True bypass switching ensures the original signal remains unaffected when the pedal is disengaged. Side-mounted jacks support efficient pedalboard layout, helping to maximise space without compromising accessibility.

Backed by manufacturer support and careful construction, the Volta Custom Jailbreaker offers a reliable and practical solution for players seeking authentic amp-style tones in a compact format. Its combination of dynamic response, dual channel flexibility, and solid build makes it a strong addition to a wide range of rigs.

Controls

• GAIN: Sets base drive from clean edge to saturated overdrive
• TONE: Adjusts overall brightness from warm to cutting presence
• VOLUME: Controls output level with enough headroom to boost
• HOT DRV: Adds additional gain stage for lead saturation
• HOT LVL: Sets volume level for hot channel output balance
• TIGHT SWITCH: Tightens low end for focused articulate response
• MOJO SWITCH: Adds compression and sag similar to driven power amp
• FOOTSWITCH: Engages effect and toggles between channels

Components and Technical Specification

• Fully analogue amp-style overdrive circuit for natural response
• Dual gain stages provide rhythm and lead sounds in one pedal
• True bypass switching preserves original signal integrity
• High headroom design suitable for clean amp platforms
• Low noise performance for studio and live environments
• Powder coated aluminium enclosure for durability
• Top mounted input and output jacks save pedalboard space
• LED indicators show effect and channel status clearly
• Powered by standard 9V centre negative supply (not included)
• Battery operation not supported
• Current draw measured with Truetone 1Spot mA Meter:
• Bypass: Approximately 12 mA
• Engaged (maximum): Approximately 26 mA

Current draw may vary slightly depending on control settings, circuit behaviour, and active features such as gain stages, modulation, filtering, or reverb tails. For best performance, use a high quality isolated power supply that matches the pedal’s current requirements. Always refer to the manufacturer’s recommendations, as incorrect powering may cause damage.

Enclosure Dimensions

• Depth: 93 mm / 3.6 in
• Width: 119 mm / 4.7 in
• Height: 34 mm / 1.3 in

Weight

• 372 g
• 0.82 lbs
